Above Ground Swimming Pool Hot Tub Combo: What Buyers Should Know

Anyone comparing an above ground swimming pool hot tub combo against two separate units usually starts with the same question: is combining a pool and spa actually practical, or does it just create two maintenance headaches instead of one. The honest answer depends on how the space is used, how often hot water and cold laps are both wanted in the same session, and how much deck or yard area is actually available. This guide breaks down the real tradeoffs, from plumbing and heating logic to sizing decisions, so the choice is based on facts rather than showroom enthusiasm.

Why People Look for a Pool and Spa Combination

The appeal is rarely about novelty. Most homeowners want one for temperature contrast therapy, cooling off after a hot soak, or simply because a single backyard footprint has to serve both fitness and relaxation. A rehabilitation client alternating hot and cold immersion, for instance, benefits from having both temperatures within a few steps rather than across a whole property.

Commercial operators face a related but distinct problem. Hotels, B&Bs, and fitness centers need to offer both a swimming amenity and a spa experience without doubling plumbing runs, electrical panels, or maintenance staff hours. An above ground swimming pool hot tub combo, or a pool and hot tub placed on a shared deck with linked filtration, answers that operational pressure directly.

Shared Systems vs. Independent Units: What Actually Changes

There are two distinct approaches sold under the "combo" label, and confusing them leads to disappointment.

Fully integrated combo — one shell, one filtration loop, a divider wall separating hot and cold zones. Water chemistry and heating are managed together, which simplifies plumbing but means a failure on one side can affect scheduling on the other.
Adjacent independent units — a standalone above ground pool and a separate hot tub, like the Fspa Hot Tub series, installed on the same deck or patio with their own pumps, heaters, and sanitization.

The second approach is what most manufacturers, including us, actually supply, since it lets each system be serviced, drained, or upgraded without shutting down the other. If a heater fails in the spa, the pool keeps running. That separation matters more than it sounds, especially for commercial sites where downtime has a cost.

Sizing the Spa Side of the Combo

Once the pool footprint is decided, the spa needs to match both the household size and the deck space left over. Spa capacity in this category typically ranges from compact 3-person units up to family-sized 6-person spas, and the physical footprint scales accordingly, from roughly 1870x1330mm on the small end to 2530x2300mm for larger models.

A common mistake is oversizing the spa and leaving too little clearance around the pool ladder or skimmer access. Before choosing a spa size, it helps to walk through the deck layout with the pool’s existing hardware in mind, not just the open square footage.

Hydrotherapy and Jet Configuration: More Than a Number

Jet count gets thrown around as if it were the only spec that matters, but jet placement and type matter just as much. Spa units in this range span from 16 jets in smaller shells to as many as 80 in the densest configurations, mixing water jets for muscle-targeted pressure with air jets for a softer, broader massage sensation.

A shell with 16 jets and thoughtful placement around the lower back and calves can outperform a crowded 40-jet layout that spreads pressure too thin. Before comparing raw numbers, it’s worth asking where the jets sit relative to typical seating posture, since that determines whether the massage actually reaches sore muscles or just the water surface.

Water Quality: Why Ozone Sanitization Matters for a Combo Setup

Running a pool and a spa side by side means double the water volume to manage chemically, and spa water heats up fast enough that chlorine alone can struggle to keep pace. This is where ozone sanitization systems, integrated into hot tub units like the Fspa series according to the product specifications, are intended to reduce the sanitizer load compared to chlorine-only maintenance.

Ozone doesn’t replace sanitizer entirely, but it does the heavy lifting on oxidizing organic material, which means less manual dosing and fewer cloudy-water surprises. For a combo setup where the spa gets used daily and the pool less often, that reduced maintenance burden on the spa side frees up time for the larger, slower pool chemistry routine.

Heating Logic: Why the Spa Heats Fast and the Pool Doesn’t

A frequent point of confusion is why the hot tub reaches temperature in hours while the pool takes days, even with a similar-sized heater. The answer is volume, not inefficiency. Spa heaters in this range run between 2kW and 3kW, which is more than adequate for a few hundred gallons but would barely dent a pool’s much larger volume.

That’s precisely why adjacent independent systems make more engineering sense than one shared heating loop. Trying to heat combined water volumes with a single undersized heater either overworks the equipment or leaves the pool perpetually lukewarm. Keeping heaters separate lets each match its actual job.

Technical Specifications at a Glance

Spec	Typical Range
Capacity	3 to 6 adults
Dimensions	1870x1330x800mm to 2530x2300x900mm
Heater Output	2kW to 3kW
Jet Count	16 to 80 jets
Total System Power	Up to 5.55kW
Sanitization	Ozone system

These figures describe the spa component of a combo setup and should be checked against the specific model’s datasheet, since options like LED lighting and audio systems add load to total power draw.

A top-down studio view of a spa shell showing marbled texture, multiple seating positions, and jet placement

Matching a Spa Model to the Application

Different settings put different demands on the same basic equipment.

Villas and private courtyards favor mid-size spas, around 4 to 5 adults, paired with a modest above ground pool, keeping deck space balanced.
Hotels and B&Bs often lean toward the larger 6-person configurations to serve multiple guests per session without a long wait list.
Fitness centers and rehabilitation facilities tend to prioritize jet density and ozone sanitization over ambiance features, since turnover and water quality matter more than lighting.
Natatoriums and physiotherapy centers frequently pair a compact spa with a lap-style above ground pool, since the spa serves a recovery function rather than recreation.

Matching the spa to the actual traffic pattern, not just the available budget, avoids the common outcome of an underused oversized spa sitting next to an overcrowded pool.

Lighting and Audio: Nice to Have, Not the Deciding Factor

Select spa models add integrated LED lighting and built-in audio systems, and on a shared deck with a pool, that lighting can double as ambient illumination for the whole area at night. It’s a legitimate value-add, but it shouldn’t be the deciding factor between two otherwise similar units. Get the jet layout, heater sizing, and sanitization method right first, then treat lighting and sound as the tiebreaker between comparable finalists.

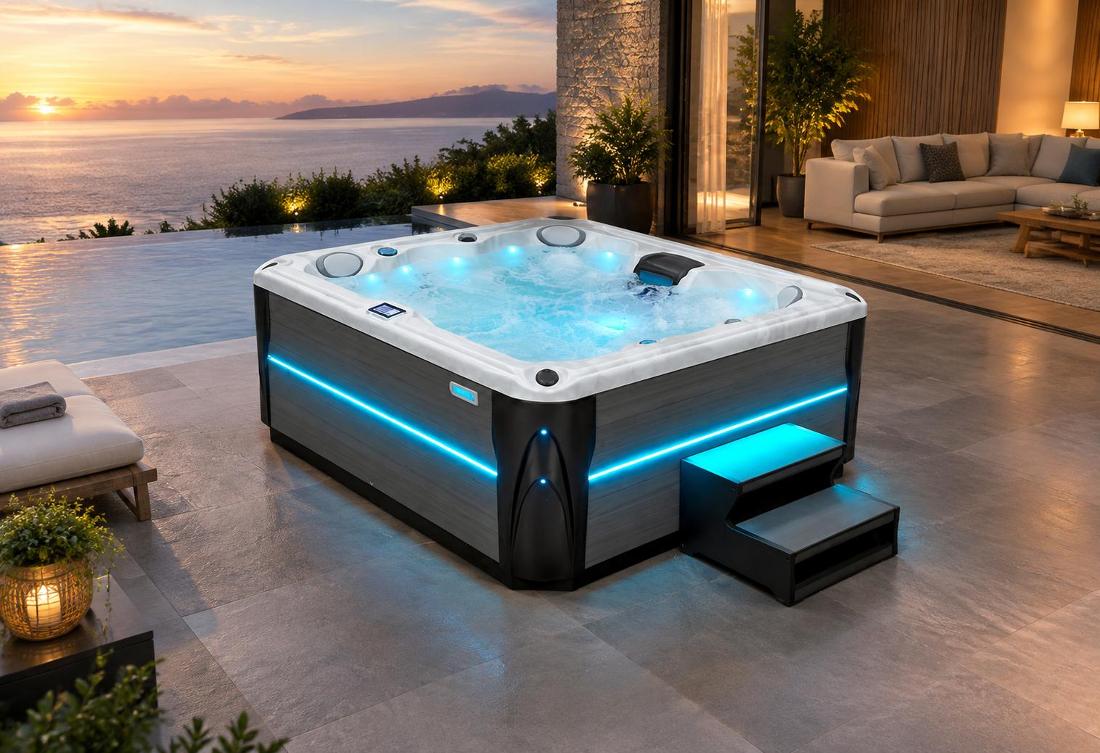

A high-angle shot of a hot tub illuminated by blue interior LED lighting on a stone patio at night

Frequently Asked Questions

Does an above ground swimming pool hot tub combo require two separate pumps?
In most configurations, yes. The pool and the spa each run their own pump and filtration loop, even when installed on the same deck, which keeps servicing one unit independent of the other.

Can the spa run in winter if the pool is closed?
Yes, when the systems are independent. This is one of the main practical arguments for choosing adjacent units over a single shared-water design, since the spa heater and cover are sized for standalone winter use.

How much deck space does a typical combo setup need?
Beyond the pool’s own footprint, plan for the spa’s dimensions plus at least 600-800mm of clearance on the access side for entry, maintenance, and any surrounding furniture.

Is ozone sanitization enough on its own?
No. Ozone reduces the sanitizer demand but is generally used alongside a baseline chlorine or bromine routine, not as a full replacement.

Choosing What Fits the Space and the Use Case

Deciding between a fully integrated shell and adjacent independent units comes down to how the space is used day to day, not which option sounds more efficient on paper. Commercial sites with heavy daily spa use and occasional pool access benefit from independent systems that isolate maintenance. Residential buyers chasing a compact footprint might still prefer them for the same reason: fewer shared failure points.

For us, spa design has focused on matching jet configuration, heater output, and sanitization method to real usage patterns rather than maximizing spec sheet numbers. Whether the end goal is a backyard above ground swimming pool hot tub combo for a family or a multi-unit installation for a hotel courtyard, the same principle holds. Size the spa to the people who will actually use it, keep the systems separable, and let the water chemistry method match the bather load, not just the marketing copy on the box.
