Swim Spa Sizes: A Practical Guide to Choosing the Right Fit

Picking swim spa sizes is less about square footage and more about matching water volume to how a household actually plans to use it. Buyers often start with a floor plan number and end up disappointed once jets, seating, and swim current all compete for the same limited space. Understanding how dimensions, capacity, and function relate to each other saves both money and regret.

This guide breaks down the practical side of sizing: what the numbers mean, how they connect to real installations, and where a compact hydrotherapy spa might serve better than a full-length swim spa.

Why Swim Spa Sizes Confuse First-Time Buyers

Manufacturers list dimensions in millimeters or feet, but rarely explain what those numbers mean for daily use. A tub measuring 2350x2350x900mm sounds abstract until you picture six adults sitting around its perimeter rather than swimming laps.

The confusion deepens because "swim spa" covers two very different products. Some units are long, narrow pools built for continuous swimming against a current. Others are square or round hot tubs marketed loosely under the same term because they include jets and multiple seats. Knowing which category fits your goal matters more than the raw dimensions.

Matching Dimensions to Household Needs

Before comparing brochures, it helps to separate space planning from water function. A 6-person hot tub and a 12-foot swim spa solve different problems, even if both get called "spa" in casual conversation.

Key questions worth answering first:

• How many people will use it at once, realistically, not on a holiday weekend?
• Is the goal muscle recovery and relaxation, or actual swimming exercise?
• What’s the available footprint on a deck, patio, or indoor room?
• Does the structure need to support the filled weight, given water adds significant mass?

A compact unit like the Fspa BD-004 illustrates the hydrotherapy end of the spectrum. It measures 2350x2350x900mm, holds 1450 liters of water, and seats six adults comfortably. That footprint suits a villa backyard or a hotel gym corner far better than a lap-swimming pool would, since the goal there is recovery, not distance training.

Reading the Technical Specifications That Actually Matter

Specification sheets bury useful details under jargon. For sizing purposes, four numbers deserve attention: capacity, water volume, total power draw, and net weight.

Water capacity connects directly to running costs. A 1450-liter unit heats faster and cheaper than a larger swim spa holding several thousand liters, which matters if the plan is daily short soaks rather than occasional long sessions. Net weight, meanwhile, tells you whether a deck needs reinforcement once water and bathers are added; a 317kg empty shell can approach or exceed a ton once filled and occupied.

Power Draw and What It Means for Placement

The BD-004 runs on a 5.55kW total system, split between a 2.2kW massage pump, a 0.35kW filter pump, and a 3kW heater. That breakdown matters when planning electrical circuits, especially for retrofits into older properties where panel capacity is limited.

Placement decisions also hinge on this. A unit drawing over 5kW typically needs a dedicated circuit, which changes where it can realistically sit relative to existing wiring. This is one area where consulting a licensed electrician before installation saves a costly rework later.

Indoor Versus Outdoor Sizing Considerations

Indoor installations face ceiling height and doorway width limits that outdoor patios rarely encounter. A rehabilitation center considering a hydrotherapy unit for a physiotherapy room needs to check corridor widths for delivery, not just floor space for the final placement.

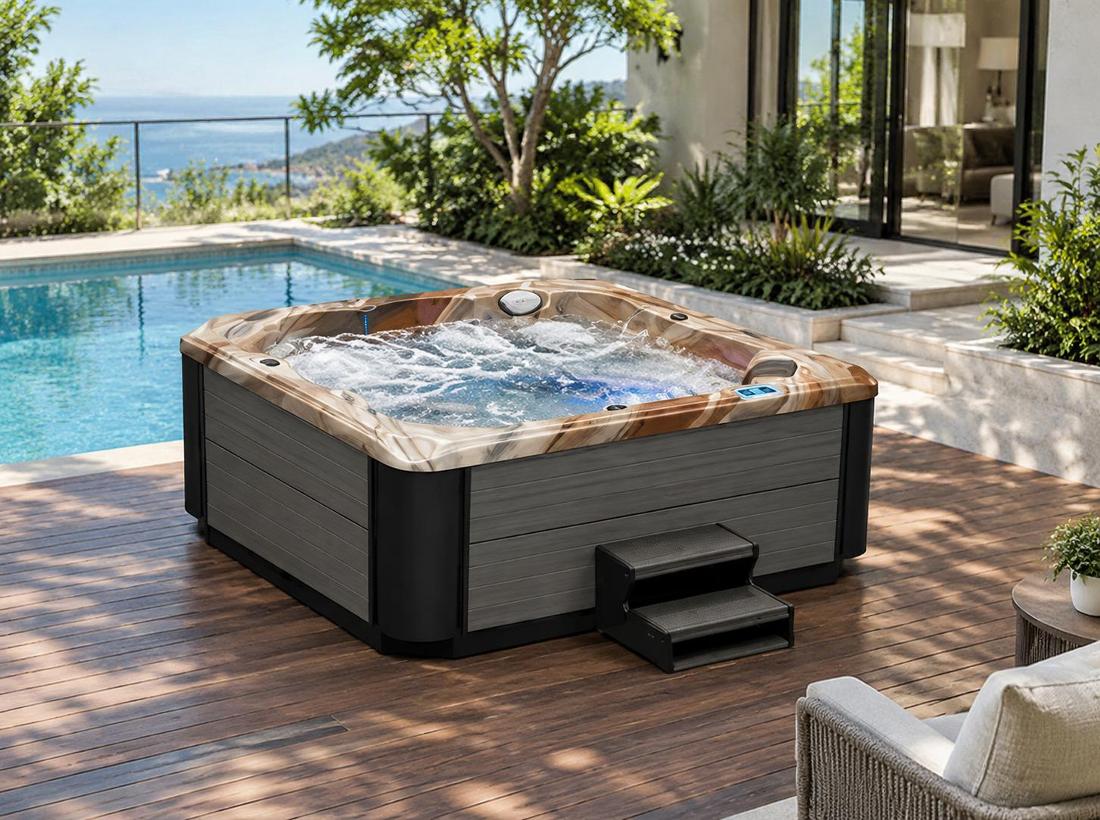

Outdoor settings shift the calculus toward weather exposure and structural support. A villa’s backyard deck, for instance, needs to bear the combined weight of the shell, water, and cabinet framing, particularly the dark grey wood-grain panels common on units like the BD-004. Builders should confirm joist spacing and load ratings before finalizing any outdoor installation.

Matching Size to Application Scenario

Different venues favor different footprints, and matching the two upfront avoids expensive reconfiguration later.

1. Hotel gyms benefit from compact units that fit into recovery zones without displacing exercise equipment; a 6-person tub like the BD-004 supports post-workout muscle recovery without demanding a dedicated room.
2. Villa backyards often have more flexible space, making room for larger footprints, though a marbled shell and dark cabinet finish can still serve as a focal point without requiring a full lap pool.
3. Seaside homestays tend to prioritize view and ambiance over swim distance, so a seated hydrotherapy unit positioned toward the water often outperforms a longer swim spa in guest satisfaction.
4. Rehabilitation centers need predictable, code-compliant sizing since ergonomic seating and jet placement directly affect therapy outcomes for patients with limited mobility.

Seating Layout and Its Effect on Perceived Size

Two units with identical square footage can feel completely different once seating layout enters the picture. According to the manufacturer, the BD-004 uses an ergonomic design where seats and backrests follow the body’s natural curves, with jets and controls positioned for reach rather than symmetry alone.

This matters because a tub that looks small on paper can still feel spacious if the seating avoids wasted center space. Conversely, a larger shell with poorly placed seats can feel cramped once six adults settle in. Reviewing seat renderings, not just exterior dimensions, gives a more honest sense of usable space.

Common Sizing Mistakes to Avoid

Buyers frequently make the same handful of errors when shopping by dimension alone:

• Assuming "6-person" capacity means six adults will be comfortable simultaneously during active use, rather than a seating maximum.
• Overlooking delivery access, such as gate widths or stairwells, until the unit arrives and won’t fit through.
• Ignoring water capacity’s effect on heating time, then being surprised by slow warm-up on first use.
• Skipping a structural assessment for outdoor decks, assuming existing framing can handle the added weight without verification.

FAQ: Common Questions About Swim Spa Sizes

Does a bigger swim spa always mean better hydrotherapy?
Not necessarily. Jet count, placement, and pump power matter more than raw volume. A well-designed 6-person unit with 35 jets can deliver a more targeted massage experience than a larger pool with jets spread thin across more surface area.

How do I know if my deck can support the weight?
Check the unit’s net weight, then add the water capacity in kilograms, since one liter of water weighs roughly one kilogram, plus the estimated weight of occupants. Compare that total against your deck or floor’s rated load capacity, ideally with input from a structural professional.

Is a compact hydrotherapy spa suitable for daily use?
Yes, particularly for recovery-focused use. Smaller water volumes heat faster and cost less to run daily compared with larger swim spas designed for continuous lap swimming.

What certifications should I check before buying?
Look for recognized safety and electrical certifications relevant to your region, such as CE, CB, or SAA marks, which confirm the unit has passed relevant testing standards.

Making the Final Decision

Sizing a spa correctly comes down to matching three things: the number of people who will realistically use it together, the physical space available for both the unit and its access route, and the intended purpose, whether that’s therapeutic recovery or exercise swimming.

For those weighing swim spa sizes against footprint and function, a mid-size hydrotherapy option often bridges the gap better than either extreme. A unit sized like the BD-004, with its 2350x2350mm footprint and 6-person seating, suits villas, hotel gyms, and seaside homestays looking for relaxation rather than lap distance. For us, that middle ground between compact hot tubs and full-length swim spas tends to serve the widest range of real-world spaces without forcing a compromise on comfort.
